Prode Properties
Properties of pure fluids and mixtures, multi phase equilibria, process simulation, software

Title : fluid properties and process simulation software, Windows, Linux, Android, IOS

Download Prode Properties
Documentation, includes software installation and detailed description with application examples
Contact Prode
Do you need assistance or wish to discuss applications ?
Contact Prode

The thermodynamic properties which you need

When introduced in 1993 Prode Properties was the first c++ thermodynamic framework designed to provide advanced features as those available in process simulators within common Windows applications such as Lotus 1,2,3 and Microsoft Excel, now (2022) it is a mature and stable code which has been verified by Prode and many other companies with extensive testing for more than 25 years of service, Prode Properties provides a stable platform for both everyday work and industrial applications.
Prode Properties permits to calculate the properties of pure fluids or mixtures, solve two phase (vapor-liquid) three phases (vapor-liquid-liquid) and multiphase (vapor-liquid-solid-hydrate) separations, solves distillation columns, multiphase flow, prints phase envelopes , phase diagrams, calculate critical points, cricondentherm, cricondenbar, heating / cooling curves etc. Prode Properties represents the best solution when a compact and easy to use library for rigorous thermodynamics is preferable over more complex tools.
Some applications:

Perfect integration with your favourite software

Prode Properties links directly (you DO NOT need to run and connect two independent applications) with Microsoft Windows, Linux, Android applications including:

Technical features overview

Prode Properties library includes C++ ANSI ISO standard code, there are no limits on number of concurrent threads, the version for Windows (the same code is available for Android, Linux etc.) is released in form of compact Dynamic Library.

Fluid properties online : server Side (Linux server)

Prode Properties can be installed on servers (Linux, Windows), herebelow a few examples :

Fluid properties in your Pc, tablet, smartphone... a full range of applications

Prode Properties adopts a unified GUI (interface) for Windows, Linux, Android... the editor permits to edit all the information ( composition, operating conditions, models, options) in all streams, solve unit operations, inspect the databases which contain the parameters for the different chemicals, calculate BIPS (with the included data regression procedure) etc.

Fluid Properties in Excel

The distribution files include several applications examples for Excel, OpenOffice, Python and other tools, herebelow an application example showing Prode Properties solving a distillation column in Excel

Fluid Properties in OpenOffice

The distribution files include several examples for OpenOffice, these examples are based on Open Office Basic interface (see the notes on operating manual), a different interface (based on UNO) is available from Prode

Fluid Properties in Python

Prode Properties provides a complete set of methods for calculating fluid properties and do process simulation in Python, this example shows how to obtain fluid properties in Python terminal

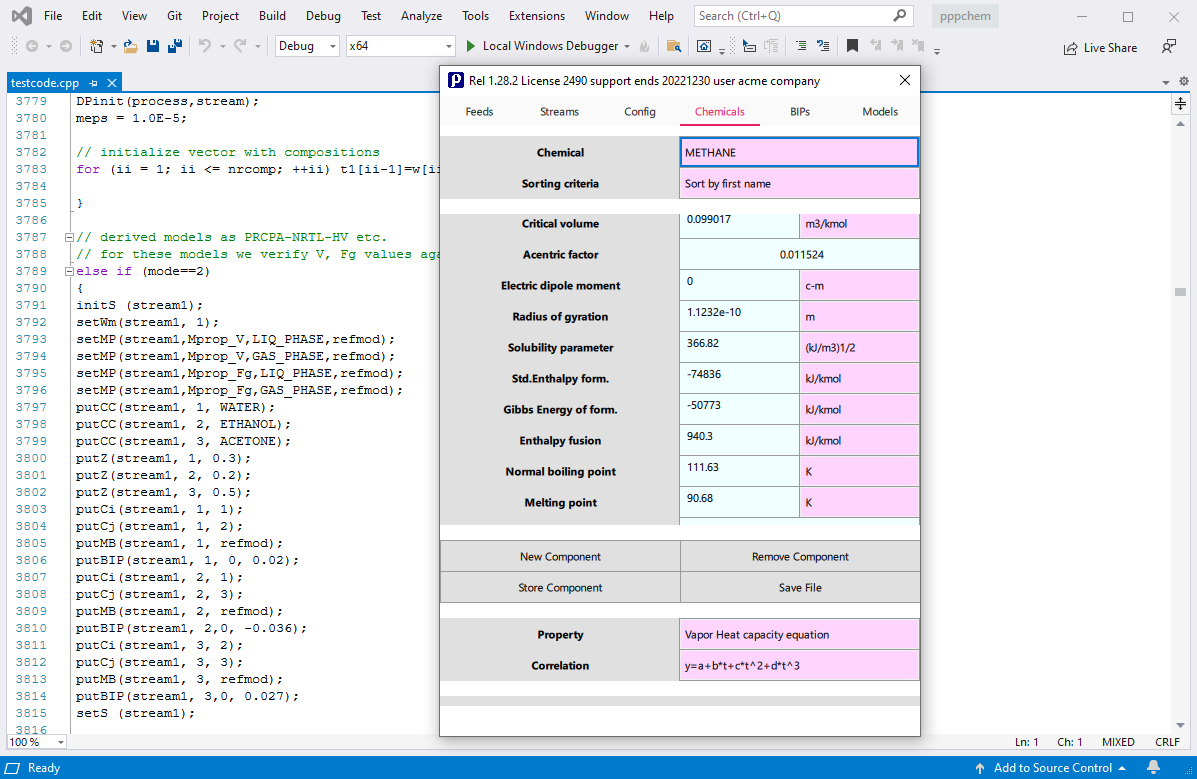

Fluid Properties in C++, NET, FORTRAN...

Prode Properties library can be easily integrated in applications written in C++, FORTRAN, NET (VB, C), JAVA...

Run multiple threads with Prode Properties

Prode Properties supports multithreading by design, there are no limits on number of threads, the distribution includes a desktop app (Prode Properties Tests) which allows to test the software running multiple threads

Herebelow a short list of the properties available, read the operating manual for additional information.

Technical features overview (Windows version)

Typical applications
